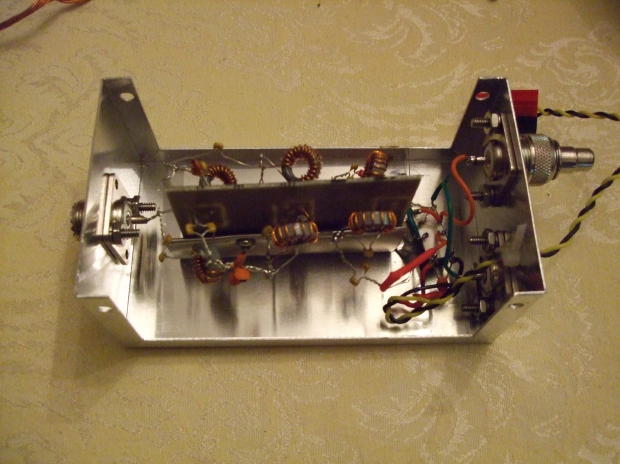

The 80m section of the band splitter. The board is attaached to the box via a bit of aluminum flashing bent into shape and secured to the box.
Receive only 160m/80m band splitter
FinePix F45fd
10/29/2009
2:24:01 PM

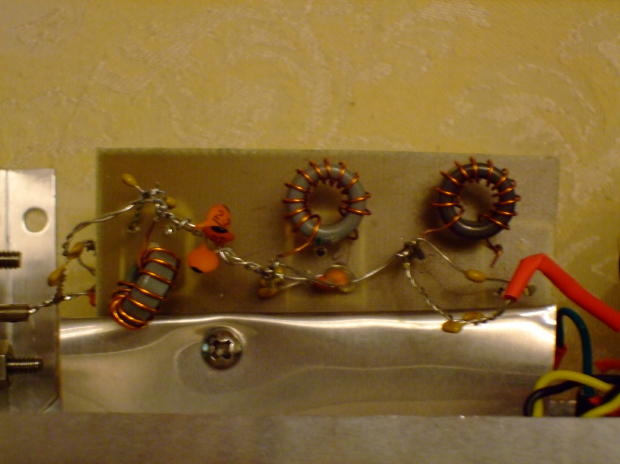

The 160m section of the receive band splitter.
Band splitter relay
FinePix F45fd
10/29/2009
2:22:40 PM

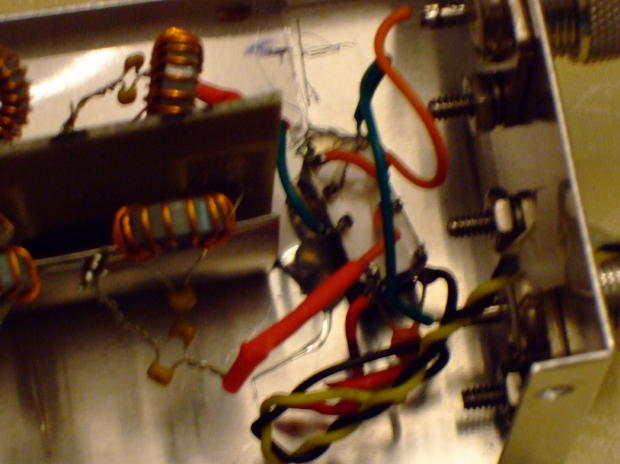

A blurred shot of the DPDT relay used for switching the output between two lines.
RX band splitter
FinePix F45fd
10/29/2009
2:21:55 PM

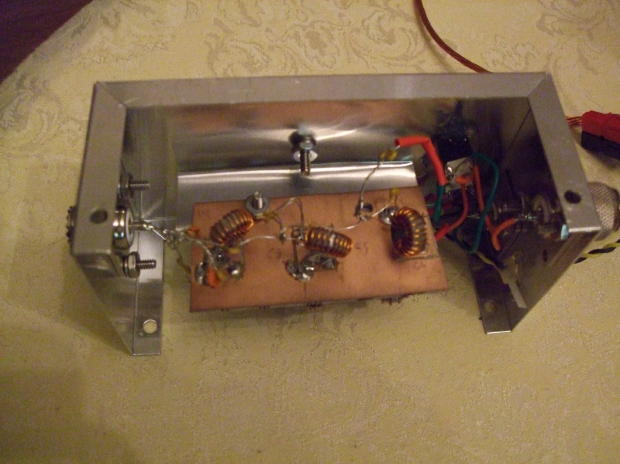

Top down view of the splitter, showing the circuit board mounted in the box vertically.
Completed 160m/80m RX antenna splitter
FinePix F45fd
10/29/2009
2:19:42 PM

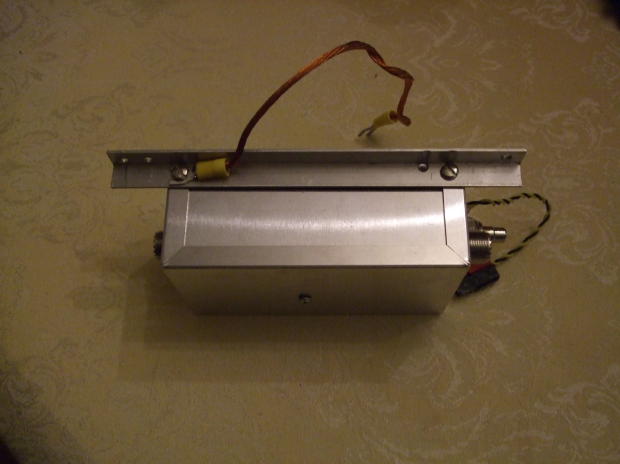

The finished product - the receive antenna come in from the left, and the signal is split into two outputs to the right, 160m and 80m. The section of angle stock is used to mount the splitter onto the grounding panel, near the antenna entrance.
